Triple Silver Low-E

In layman's terms, the composite film system coated with a silver film on the surface of the glass substrate is called single silver, and the composite film system coated with two silver films is called double silver. The so-called triple silver is a composite film system with three separated silver layers plated on the surface of the glass substrate. This is true in production. However, it does not necessarily mean that the glass coated with three layers of silver film is three silver, but there is another measure-the ratio of light to heat.

Category:

Triple Low-e IGU

Keywords:

Color glazed glass / Digital printing glass / anti glare glass

E-mail：Info@taiwangglass.cc

Inquiry

Product Describe

The origin and superiority of three silver

Triple silver Low E insulating glass adopts our independent research and development of advanced glass coating technology in most countries (four-silver or five-silver LOW E coating products will not appear on the market in the later period, and the production cost is much greater than the energy-saving cost. It is currently an advanced and energy-saving glass products in the world.

Compared with the first and second generation Low E insulating glass.

Benefits:

Human body comfort:

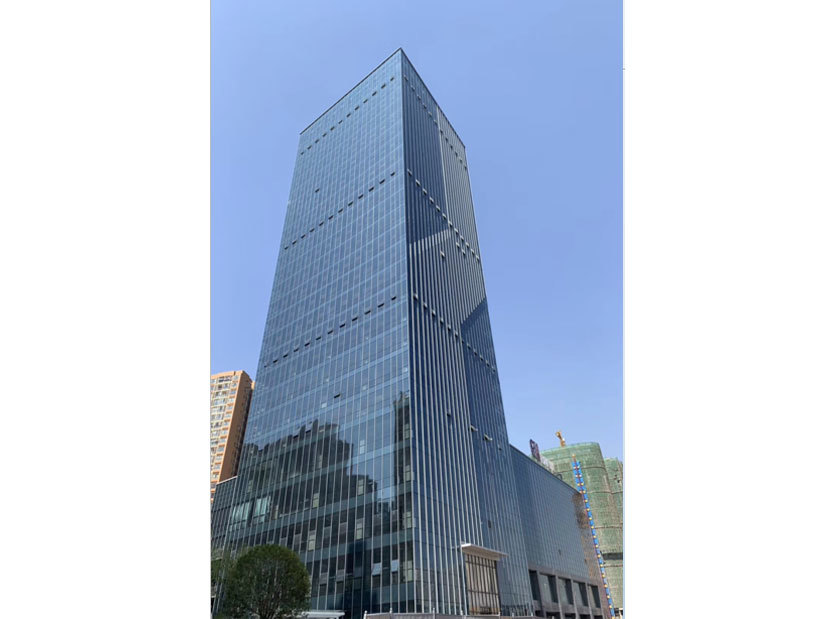

Triple silver Low E insulating glass can block more than 98% of the outdoor solar heat, and transmits light and does not transmit heat. If the whole curtain wall uses triple silver Low E insulating glass, it can truly enjoy the "sun bath" of cold light source under transparent lighting, without burning sensation on the body, and can solve the problem of east-west sun exposure of buildings at the same time. In winter, it can reflect the indoor far-infrared heat radiation back into the room to keep the indoor heat from leaking out, which plays a good role in heat preservation.

The color is not distorted:

Compared with the first and second generation Low E, the appearance color of the triple silver Low E is more pure and beautiful, and the color reproduction degree is over 99%. It can greatly restore the natural color of the outdoor scenery and conform to the human vision’s pursuit of transparency and real beauty avoiding visual distortion in indoor observation.

Glass Category	Light to Heat Ratio LSG
Coated Glass	LSG<1
Single Silver Glass	1≤LSG<1.5
Double Silver Glass	1.5≤LSG<2.0
Three Silver Glass	2.0≤LSG<2.4

Table II

Let's look at a set of offline coating data:

Configuration	Tv %	Ro %	Shgc	Uw	Sc	LSG
6mm Solar	64	18	0.66	5.55	0.76	0.97
6single lowe+12A+6	66	10	0.49	1.83	0.56	1.35
6 Double lowe+12A+6	67	11	0.37	1.65	0.43	1.81
6 Triple lowe+12A+6	67	14	0.29	1.63	0.33	2.31

Table Three

It can be seen from the above data that while keeping the visible light transmittance close, as the number of silver layers in the film increases, the heat penetration gradually decreases. Compared with single silver and double silver, triple silver Low-E coated glass can control the heat balance to the maximum. The use of low-e glass, especially the three-silver Low-E building, cannot get in the outdoor heat in summer, but cannot get out of the indoor heating in winter. It has superior thermal insulation and an excellent "warm in winter and cool in summer" effect.

In the field of low-e glass, Sanyin Low-E coated glass has unparalleled superiority.
